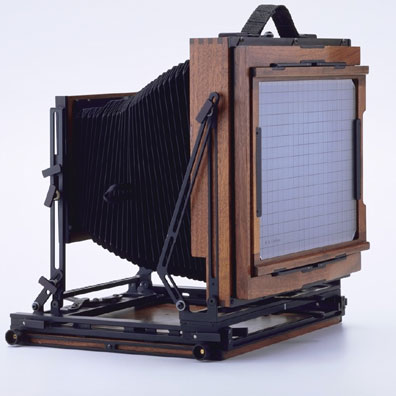

The 8x10 standard wood and metal camera.

Lens Board
NOW USING Sinar©, Horseman©
NOW USING Sinar©, Horseman©
Minimum Bellows - Standard
3.25 in.
82.55 mm
Minimum Bellows - Wide Angle
0 in.
0 mm
Maximum Bellows - Standard
36 in.
914.4 mm
Maximum Bellows - Wide Angle
9 in.
228.6 mm
Rear Shift
10 in.
254 mm
Rear Swing
22 Degrees
22 Degrees
Rear Tilt
21 Degrees Back / Limited by Bellows Forward
21 Degrees Back / Limited by Bellows Forward
Front Swing
42 Degrees
42 Degrees
Front Tilt - Axis
Limited by Bellows
Limited by Bellows
Front Tilt - Base
45 Degrees Forward / 90 Degrees Back
45 Degrees Forward / 90 Degrees Back
Front Rise
2.375 in.
60.325 mm
Front Fall
3.75 in.
95.25 mm
Dimensions (including knobs)
12.5" x 13.375" x 4.5"
317.5 mm x 339.725 mm x 114.3 mm
Weight
9.4 lbs
4.264 kg

In an attempt to standardize the cameras all larger cameras will now be equipped with the Sinar©, Horseman© style lens boards.

The 8x10 standard camera has a modular design similar to the 4x5, 5x7, and 4x10 wood cameras. By replacing the rear standard / bellows / back assembly this camera can be converted into a 7x17 and an 8x20 with 36 inches (914.4 mm) of bellows draw with the correct accessories.
