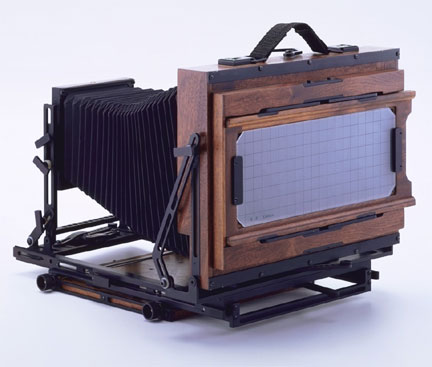

The 4x10 wood and metal field camera.

Lens Board
4.3 in.
110 mm
Minimum Bellows - Standard
3 in.
76.2 mm
Minimum Bellows - Wide Angle
N/A
N/A
Maximum Bellows - Standard
26 in.
660.4 mm
Maximum Bellows - Wide Angle
N/A
N/A
Rear Shift
7 in.
177.8 mm
Rear Swing
22 Degrees
22 Degrees
Rear Tilt
20 Degrees Back / Limited by Bellows Forward
20 Degrees Back / Limited by Bellows Forward
Front Swing
42 Degrees
42 Degrees
Front Tilt - Axis
Limited by Bellows
Limited by Bellows
Front Tilt - Base
45 Degrees Forward / 90 Degrees Back
45 Degrees Forward / 90 Degrees Back
Front Rise
1.125 in.
28.58 mm
Front Fall
2 in.
50.8 mm
Dimensions (including knobs)
9.5" x 13.375" x 4.25"
241.3 mm x 339.725 mm x 107.95 mm
Weight
6.2 lbs
2.812 kg

The 4x10 field camera has a modular design. The camera can be converted into either a 5x7 or a 4x5 by interchanging the entire rear standard / bellows / back assembly. This assembly can be removed and replaced with a 4x5 or 5x7 rear standard / bellows / back assembly.

Due to the limited number of 4x10 holders we have left they will only be sold with the sale of a 4x10 camera or conversion. The price per holder is currently $150.

Folding Instructions can be downloaded in .pdf format here. This requires Adobe Acrobat to open. It can be downloaded for free from the Adobe web page.
