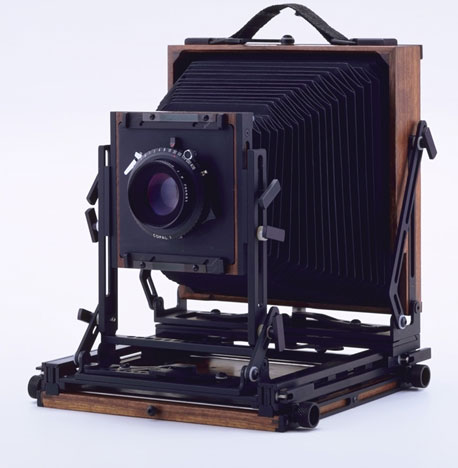

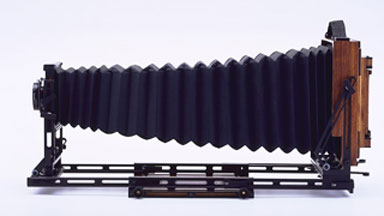

The 4x5 and 5x7 wood field cameras.

Lens Board
4.3 in.
110 mm
Minimum Bellows - Standard
3 in.
76.2 mm
Minimum Bellows - Wide Angle
0 in.
0 mm
Maximum Bellows - Standard
25 in.
635 mm
Maximum Bellows - Wide Angle
9 in.
228.6 mm
Rear Shift
7 in.
177.8 mm
Rear Swing
22 Degrees
22 Degrees
Rear Tilt
20 Degrees Back / Limited by Bellows Forward
20 Degrees Back / Limited by Bellows Forward
Front Swing
42 Degrees
42 Degrees
Front Tilt - Axis
Limited by Bellows
Limited by Bellows
Front Tilt - Base
45 Degrees Forward / 90 Degrees Back
45 Degrees Forward / 90 Degrees Back
Front Rise
1.125 in.
28.58 mm
Front Fall
2 in.
50.8 mm
Dimensions (including knobs)
9.5" x 10.375" x 4.25"
241.3 mm x 263.53 mm x 107.95 mm
Weight
6 lbs
2.72 kg

All specs are the same for both the 4x5 and the 5x7 EXCEPT the dimensions of the 5x7 are 9.5" x 10.375" x 4.125" which equals
241.3 mm x 263.53 mm x 104.775 mm.

This 4x5/5x7 field camera has a modular design. The camera can be used with either a 5x7 or a 4x5 back, or the entire rear standard / bellows / back assembly can be removed and replaced with a 4x10 rear standard / bellows / back assembly or a 5x12 rear standard / bellows / back assembly.
