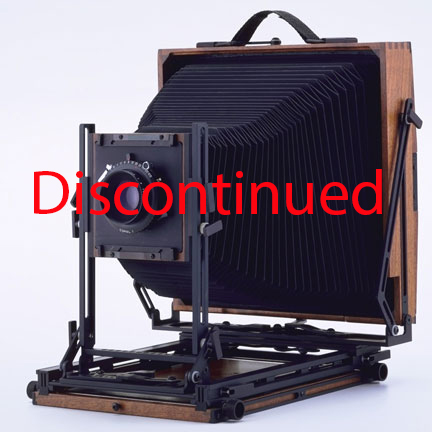

The 8x10 light weight field camera

Lens Board
4.3 in.
110 mm
Minimum Bellows - Standard
3.25 in.
82.55 mm
Minimum Bellows - Wide Angle
0 in.
0 mm
Maximum Bellows - Standard
36 in.
914.4 mm
Maximum Bellows - Wide Angle
9 in.
228.6 mm
Rear Shift
7 in.
177.8 mm
Rear Swing
22 Degrees
22 Degrees
Rear Tilt
20 Degrees Back / Limited by Bellows Forward
20 Degrees Back / Limited by Bellows Forward
Front Swing
42 Degrees
42 Degrees
Front Tilt - Axis
Limited by Bellows
Limited by Bellows
Front Tilt - Base
45 Degrees Forward / 90 Degrees Back
45 Degrees Forward / 90 Degrees Back
Front Rise
2.375 in.
60.325 mm
Front Fall
3.75 in.
95.25 mm
Dimensions (including knobs)
12.5" x 13.375" x 4.5"
317.5 mm x 339.725 mm x 114.3 mm
Weight
8.4 lbs
3.81 kg

Folding Instructions can be found here.
