Ultra Large Format (ULF) Cameras: 7x17, 8x20, 11x14,12x20, 5x12, 10x12, & 14x17 (specs on the 14x17, 10x12, and 5x12 are not currently available, please call for more information).**

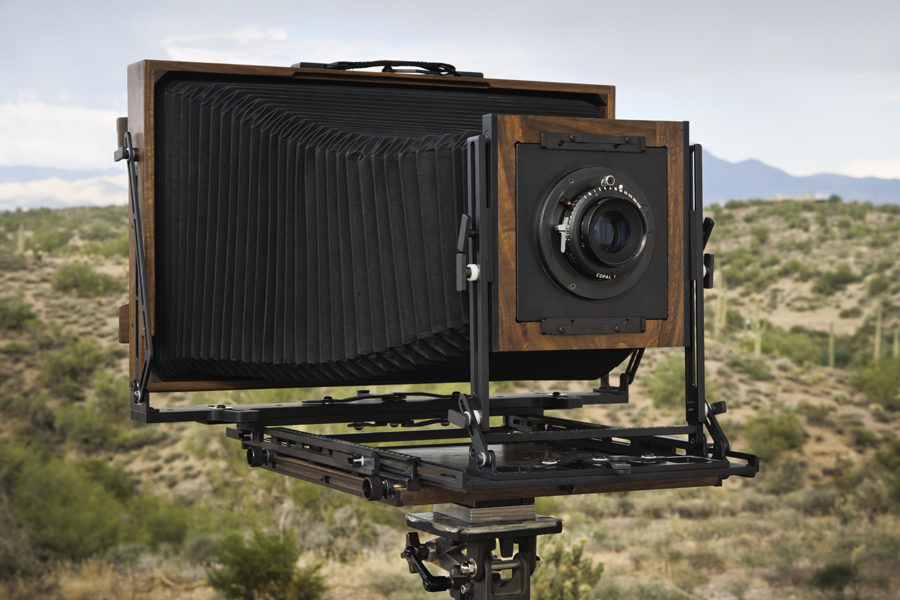

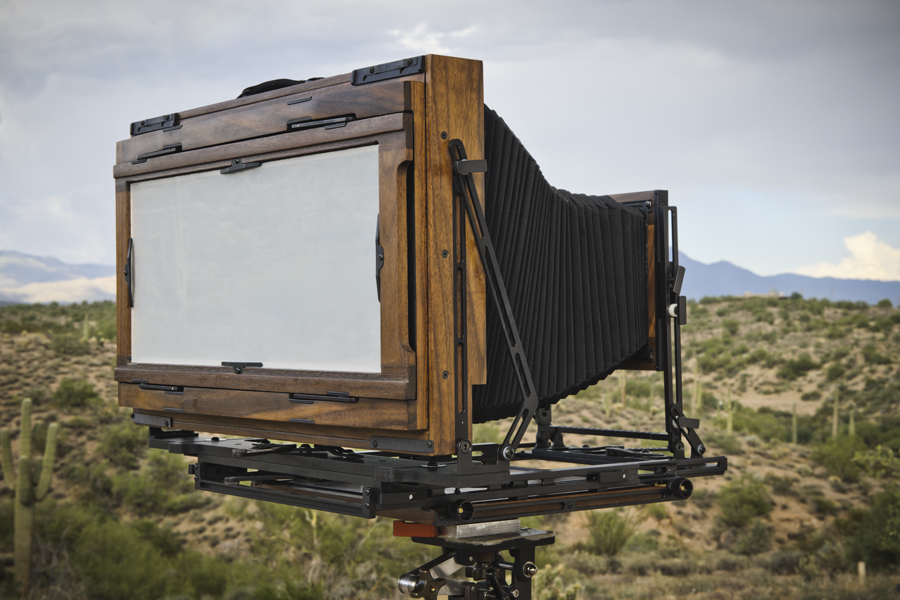

The 7x17:
|
Lens Board |
Sinar©, Horseman© |
Sinar©, Horseman© |
|
Minimum Bellows - Standard |
3.25 in. |
82.55 mm |
|
Minimum Bellows - Wide Angle |
N/A |
N/A |
|
Maximum Bellows - Standard |
36 in. |
914.4 mm |
|
Maximum Bellows - Wide Angle |
N/A |
N/A |
|
Rear Shift |
10 in. |
254 mm |
|
Rear Swing |
22 Degrees |
22 Degrees |
|
Rear Tilt |
20 Degrees Back / Limited by Bellows
Forward |
20 Degrees Back / Limited by Bellows
Forward |
|
Front Swing |
42 Degrees |
42 Degrees |
|
Front Tilt - Axis |
Limited by Bellows |
Limited by Bellows |
|
Front Tilt - Base |
45 Degrees Forward / 90 Degrees Back |
45 Degrees Forward / 90 Degrees Back |
|
Front Rise |
2.375 in. |
60.325 mm |
|
Front Fall |
3.75 in. |
95.25 mm |
|
Dimensions (including knobs) |
12.5" x 21.375" x 4.5" |
317.5 mm x 542.925 mm x 114.3 mm |
|
Weight |
10 lbs |
4.536 kg |
The 8x20:
|
Lens Board |
Sinar©, Horseman© |
Sinar©, Horseman© |
|
Minimum Bellows - Standard |
3.25 in. |
82.55 mm |
|
Minimum Bellows - Wide Angle |
N/A |
N/A |
|
Maximum Bellows - Standard |
36 in. |
914.4 mm |
|
Maximum Bellows - Wide Angle |
N/A |
N/A |
|
Rear Shift |
10 in. |
254 mm |
|
Rear Swing |
22 Degrees |
22 Degrees |
|
Rear Tilt |
20 Degrees Back / Limited by Bellows
Forward |
20 Degrees Back / Limited by Bellows
Forward |
|
Front Swing |
42 Degrees |
42 Degrees |
|
Front Tilt - Axis |
Limited by Bellows |
Limited by Bellows |
|
Front Tilt - Base |
45 Degrees Forward / 90 Degrees Back |
45 Degrees Forward / 90 Degrees Back |
|
Front Rise |
2.375 in. |
60.325 mm |
|
Front Fall |
3.75 in. |
95.25 mm |
|
Dimensions (including knobs) |
12.5" x 25.375" x 4.5" |
317.5 mm x 644.525 mm x 114.3 mm |
|
Weight |
16 lbs |
7.257 kg |
The 11x14:
|
Lens Board |
Sinar©, Horseman© |
Sinar©, Horseman© |
|
Minimum Bellows - Standard |
3.25 in. |
82.55 mm |
|
Minimum Bellows - Wide Angle |
N/A |
N/A |
|
Maximum Bellows - Standard |
48 in. |
1219.2 mm |
|
Maximum Bellows - Wide Angle |
N/A |
N/A |
|
Rear Shift |
10 in. |
254 mm |
|
Rear Swing |
22 Degrees |
22 Degrees |
|
Rear Tilt |
20 Degrees Back / Limited by Bellows
Forward |
20 Degrees Back / Limited by Bellows
Forward |
|
Front Swing |
42 Degrees |
42 Degrees |
|
Front Tilt - Axis |
Limited by Bellows |
Limited by Bellows |
|
Front Tilt - Base |
45 Degrees Forward / 90 Degrees Back |
45 Degrees Forward / 90 Degrees Back |
|
Front Rise |
4.5 in. |
114.3 mm |
|
Front Fall |
6.25 in. |
158.75 mm |
|
Dimensions (including knobs) |
18" x 18.875" 4.5" |
457.2 mm x 479.425 mm x 114.3 mm |
|
Weight |
16.5 lbs |
7.484 kg |
The 12x20:
|
Lens Board |
Sinar©, Horseman© |
Sinar©, Horseman© |
|
Minimum Bellows - Standard |
3.25 in. |
82.55 mm |
|
Minimum Bellows - Wide Angle |
N/A |
N/A |
|
Maximum Bellows - Standard |
48 in. |
1219.2 mm |
|
Maximum Bellows - Wide Angle |
N/A |
N/A |
|
Rear Shift |
10 in. |
254 mm |
|
Rear Swing |
22 Degrees |
22 Degrees |
|
Rear Tilt |
20 Degrees Back / Limited by Bellows
Forward |
20 Degrees Back / Limited by Bellows
Forward |
|
Front Swing |
42 Degrees |
42 Degrees |
|
Front Tilt - Axis |
Limited by Bellows |
Limited by Bellows |
|
Front Tilt - Base |
45 Degrees Forward / 90 Degrees Back |
45 Degrees Forward / 90 Degrees Back |
|
Front Rise |
4.5 in. |
114.3 mm |
|
Front Fall |
6.25 in. |
158.75 mm |
|
Dimensions (including knobs) |
18" x 25.375" 4.5" |
457.2 mm x 644.525 mm x 114.3 mm |
|
Weight |
16.8 lbs |
7.620 kg |
The 14x17: 48" Bellows Draw and sits on the 11x14 bed.
The 5x12: 25" Bellows Draw and sit on the 4x5/5x7 bed.
The 10x12: 36" Bellows Draw and sits on the 8x10 standard bed.
In an attempt to standardize the cameras all larger cameras will now be equipped with the Sinar©, Horseman© style lens boards.
All of these cameras are of a modular design. The 8x10 standard can be converted into a 7x17, 10x12, and 8x20 with 36 inches (914.4 mm) of bellows draw by replacing the rear standard / bellows / back assembly. The 11x14 camera can be converted into a 7x17, an 8x20, a 14x17, and a 12x20 using the appropriate accessories.
Folding Instructions can be downloaded in .pdf format here. This requires Adobe Acrobat to open. It can be downloaded for free from the Adobe web page.
**Guaranteed delivery time is 12 months from placing order. But may be earlier.**
